SAITU1.8M 3 heads subilmation printer JC1803
- The AT board offers a range of head configurations, including 2/3/4, 6/8/12/15/16/20/24/30/36 heads, to cater to the diverse needs of different users.
- With 10-100 feathering capabilities, dark and cool color printing is more convenient, while cable transmission ensures greater stability.
- The lifting ink station effectively protects the print head when the printer is not in use.
- The use of THK guide rails results in reduced noise and smoother operation.
- The equipment employs servo integrated motors for precision and efficiency.
- For the industry, including digital printing, tent printing, carpet printing, plush toy printing, flag printing, decorative painting printing, background cloth printing, umbrella printing, mouse pad printing, and webbing printing.
描述
| Print head | 2 pcs Epson print heads 5113/4720/i3200 | 3 pcs Epson print heads 5113/4720/i3200 | |
| Maximum print width | 1800mm | ||
| Product mode | 60㎡/H | 75㎡/H | |
| Resolution mode | 45㎡/H | 60㎡/H | |
| High resolution mode | 35㎡/H | 45㎡/H | |
| Ink | Sort | Sublimation ink | |
| Capacity | Empty ink supply system | ||
| Media | Width | 1900mm | |
| Thickness | 1.5mm to 8mm adjustable | ||
| Sort | Sublimation paper | ||
| High printing quality | VSD technology | ||
| Media heater | Back heating | ||
| Media take-up device | Double motor device with the automatic damper. | ||
| Drying system | Infrared ray drying system | ||
| Guide Rail | THK from Japan | ||
| Interface | 1000 Mbit/s | ||
| RIP software | MainTop , photo print | ||
| Voltage | AC 110V ±10%,AC 220V± 10%,50/60 ±1Hz | ||
| Operation environments | Temperature: 15℃-30℃,Humidity:35%RH-65%RH | ||
| Power | 2300W | 3300W | |
| Dimensions of printer (LWH) | 2950*850*1360mm | ||
| Dimensions of packing (LWH) | 3030*850*750mm | ||
| Net weight | 220KG | ||
| Gross weight | 270KG | ||
About the printer:

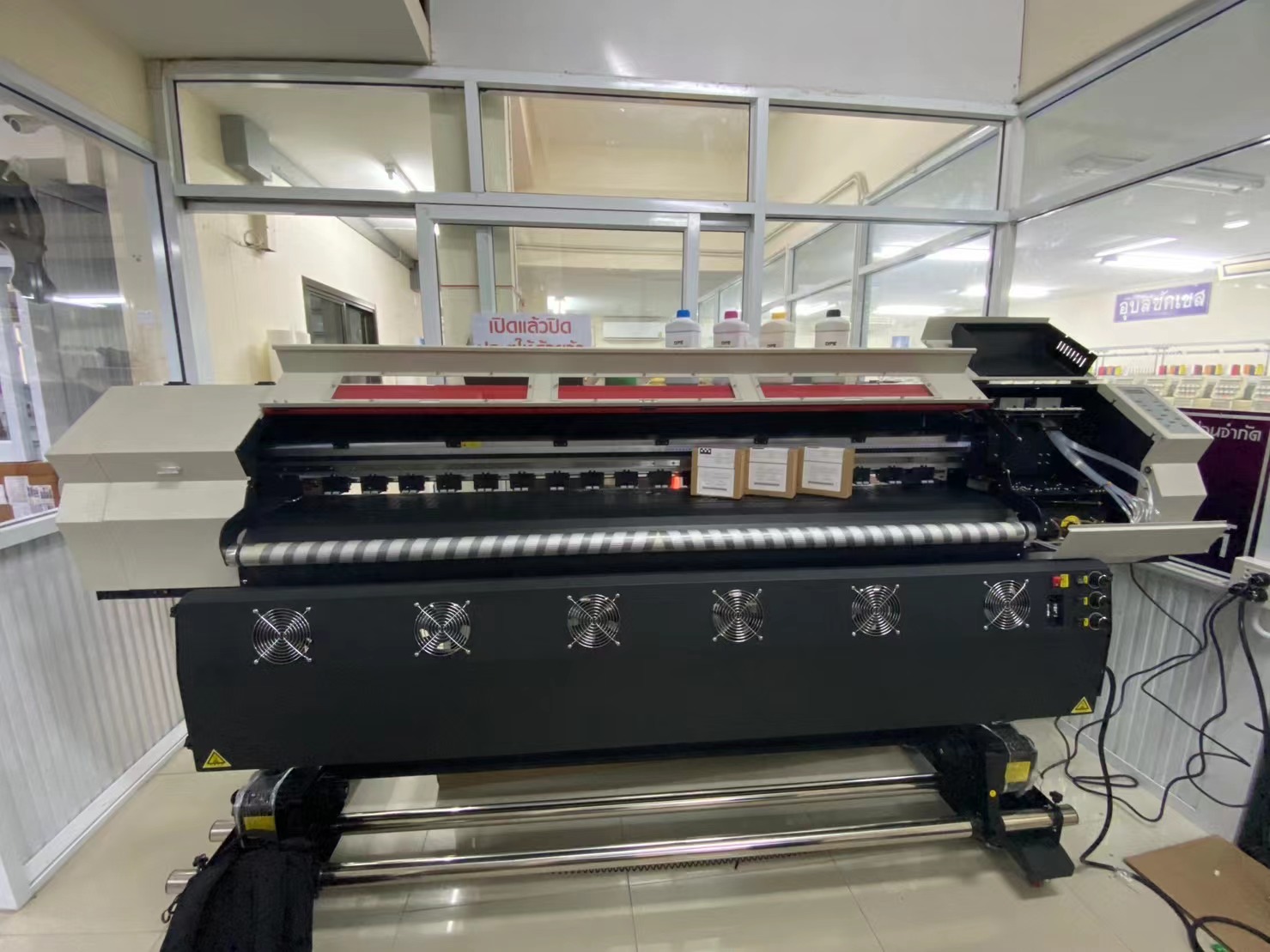

1.8m 3heads printer
- The AT board offers a range of head configurations, including 2/3/4, 6/8/12/15/16/20/24/30/36 heads, to cater to the diverse needs of different users.
- With 10-100 feathering capabilities, dark and cool color printing is more convenient, while cable transmission ensures greater stability.
- The lifting ink station effectively protects the print head when the printer is not in use.
- The use of THK guide rails results in reduced noise and smoother operation.
- The equipment employs servo integrated motors for precision and efficiency.
- For the industry, including digital printing, tent printing, carpet printing, plush toy printing, flag printing, decorative painting printing, background cloth printing, umbrella printing, mouse pad printing, and webbing printing.
