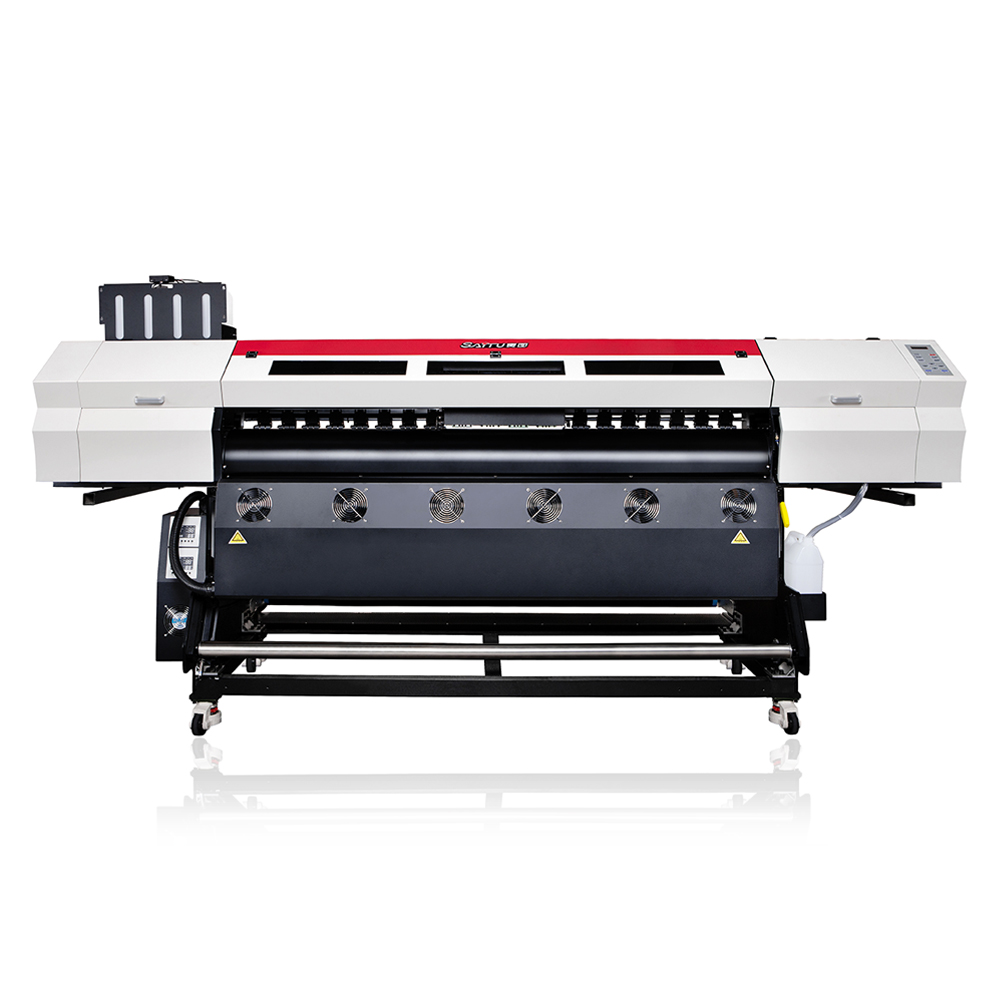

1.8m 4/6 heads sublimation printer JC1804 JC1806
1 The THK guide rail ensures silent and high-quality printing for long hours.
2 To achieve better printing effects, we utilize a slotted printing platform.
3 The standard front drying system is included.

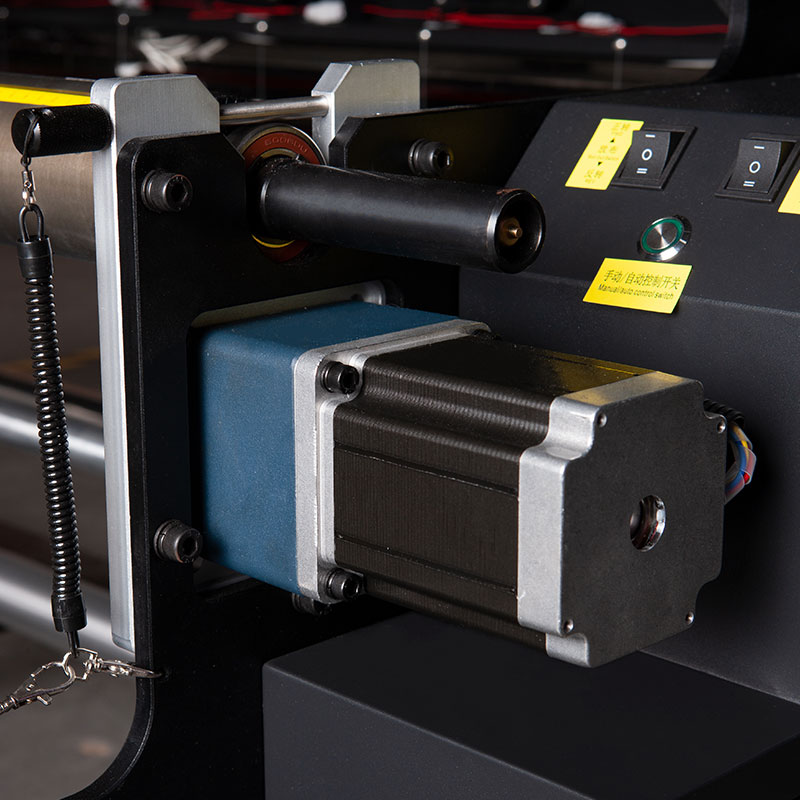

4 The tension paper rewind system allows for a more perfect paper roll-up.
描述
| Model | JC1804 | JC1806 | ||
| Print head | 4 or 6 pcs Epson 5113/4720/i1600/i3200 print heads | |||
| Maximum print width | 1900mm | |||
| Print resolution /speed | 4*5113/4720 | 4*i3200 | 6*i3200 | |
| Product mode | 160㎡/H | 165㎡/H | 250㎡/H | |
| Resolution mode | 85㎡/H | 90㎡/H | 200㎡/H | |
| High resolution mode | 55㎡/H | 60㎡/H | 150㎡/H | |
| Ink | Sort | Sublimation ink | ||
| Capacity | Empty ink supply system | |||
| Media | Width | 1800mm | ||
| Thickness | 1.5mm to 8mm adjustable | |||
| Material weight | 75KG | |||
| Sort | Sublimation paper | |||
| High printing quality | VSD technology | |||
| Media heater | Front/back heating (can be controlled separately, optional) | |||
| Media take-up device | Double motor automatic damper or air shaft feeding system. | |||
| Drying system | Infrared ray drying system | |||
| Guide Rail | THK from Japan | |||
| Interface | 1000 Mbit/s | |||
| Software | Maintop,Photoprint | |||
| Voltage | AC 110V ±10%,AC 220V± 10%,50/60 ±1Hz | |||
| Operation environments | Temperature: 15℃-30℃,Humidity:35%RH-65%RH | |||
| Power | 6000W | |||
| Dimensions of printer (LWH) | 3500*950*1450mm | |||
| Dimensions of packing (LWH) | 3640*1135*1750mm | |||
| Net weight | 350KG | |||
| Gross weight | 400KG | |||
About the printer detail:

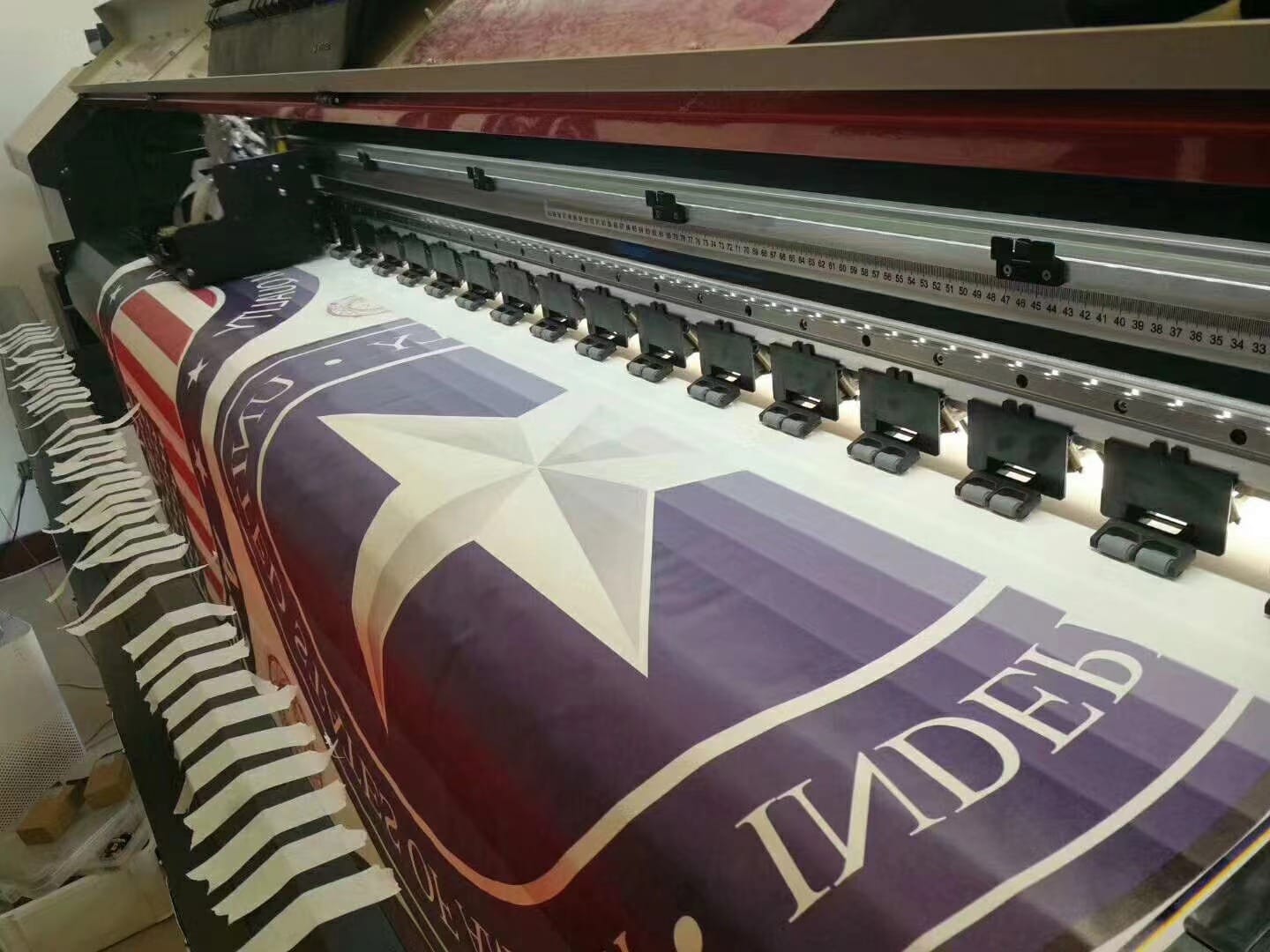

1 The THK guide rail ensures silent and high-quality printing for long hours.

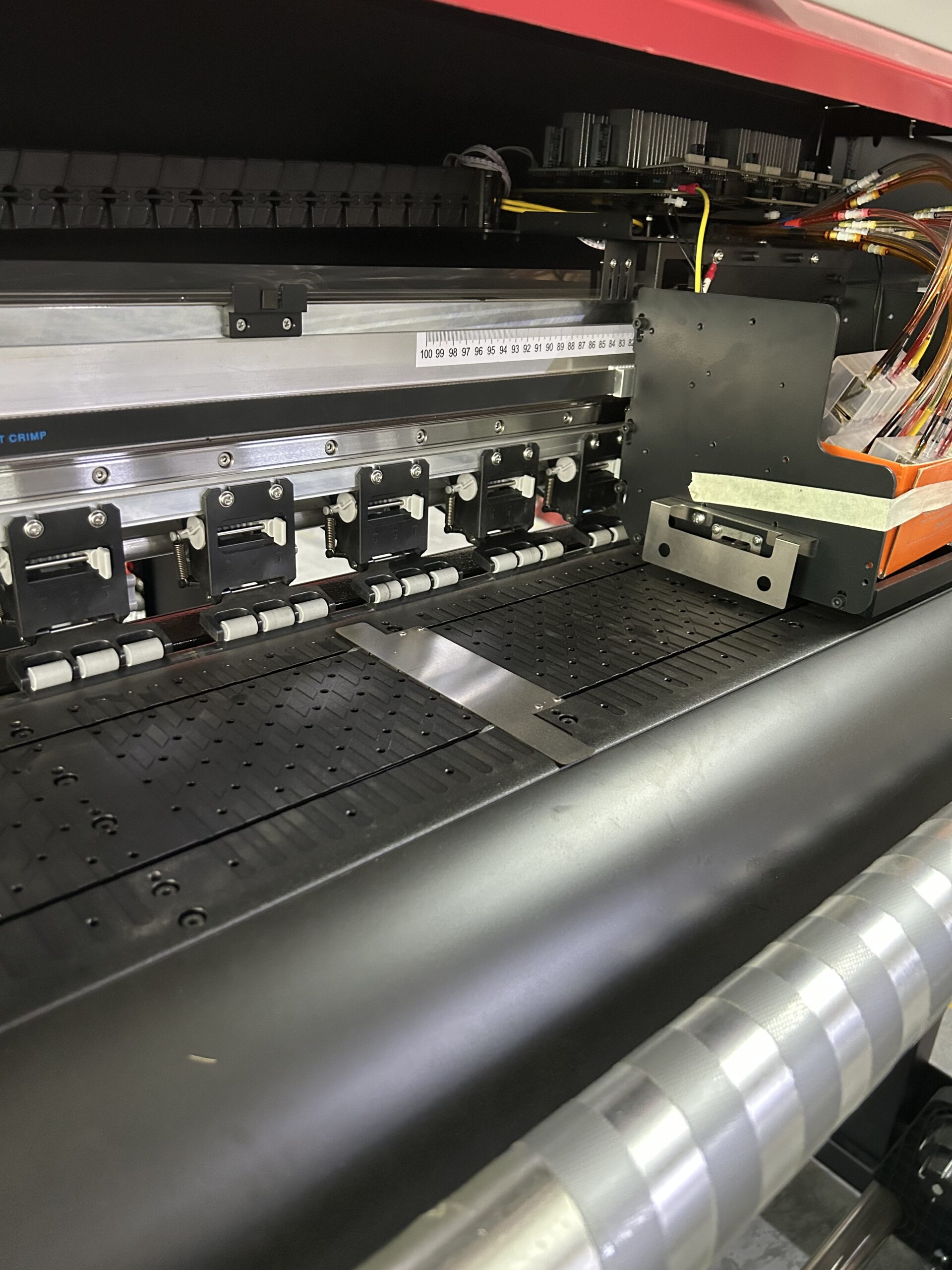

2 To achieve better printing effects, we utilize a slotted printing platform.

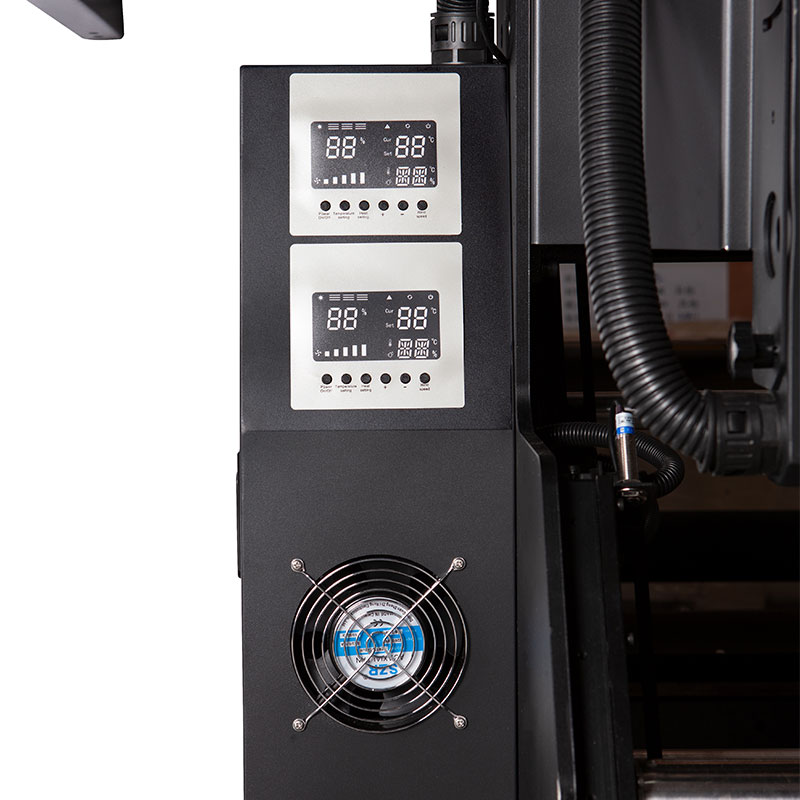

3 The standard front drying system is included.

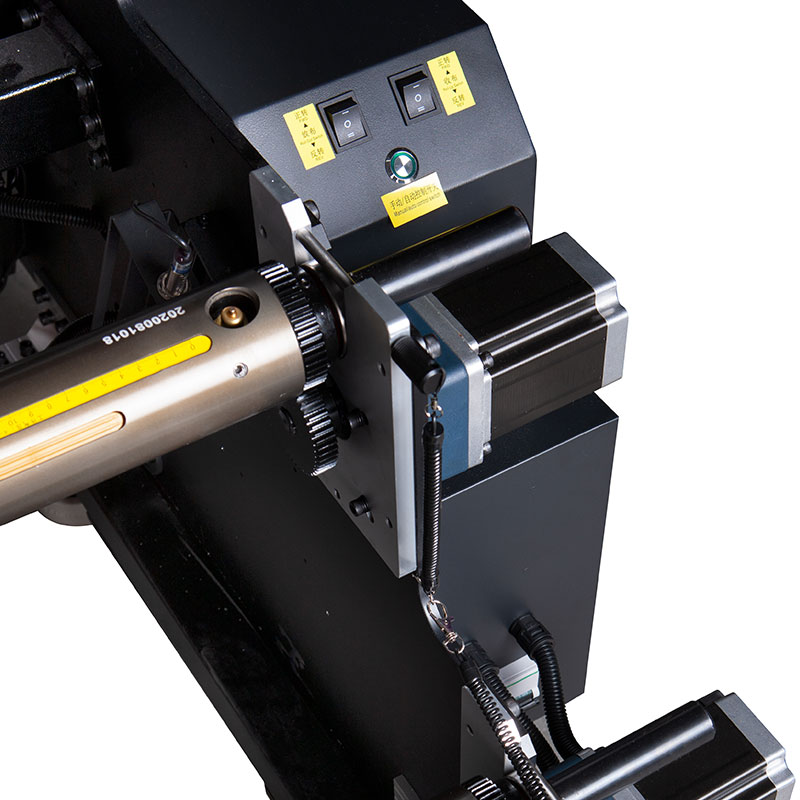

4 The tension paper rewind system allows for a more perfect paper roll-up.
Packing:
