2m 20 head sublimation printer JC2020
J2020 is a cutting-edge printer designed to offer both remarkable speed and accuracy.
Equipped with the Epson i3200 print head and integrated with the Jumbo roll system,this printer is capable of delivering impressive results at a rapid rate of 700m2/h .
With its exceptional performance, the JC2020 allows for efficient large-scale printing without the need for over time or extra shifts. Its advanced technology ensures that even substantial orders can be completed seamlessly, saving both time and labor costs.
In addition to its impressive speed and accuracy, the JC2020 also offers convenience and ease of use. Its Jumbo roll system ensures continuous printing, reducing the need for frequent roll changes and optimizing workflow efficiency.
The J2020 printer is not only cutting-edge but also designed to offer remarkable speed and accuracy. It is equipped with the Epson i3200 print head, enabling it to deliver impressive results at a rapid rate of 700m2/h. Additionally,it is integrated with the Jumbo roll system, which further enhances its efficiency.
Thanks to its exceptional performance, the JC2020 allows for efficient large-scale printing without the need for over time or extra shifts. It’s advanced technology ensures that even substantial orders can be completed seamlessly,saving both time and labor costs for businesses.
Aside from its impressive speed and accuracy, the JC2020 also offers convenience and ease of use. Its Jumbo roll system ensures continuous printing, thereby reducing the need for frequent roll changes and optimizing workflow efficiency.
In summary,the J2020 printer is an excellent choice for businesses looking for a high-speed and accurate printing solution. With its advanced technology and convenient features, it can significantly improve productivity and cost-effectiveness in large-scale printing operations.
Product parameter:
| Mode | JC2020 | |

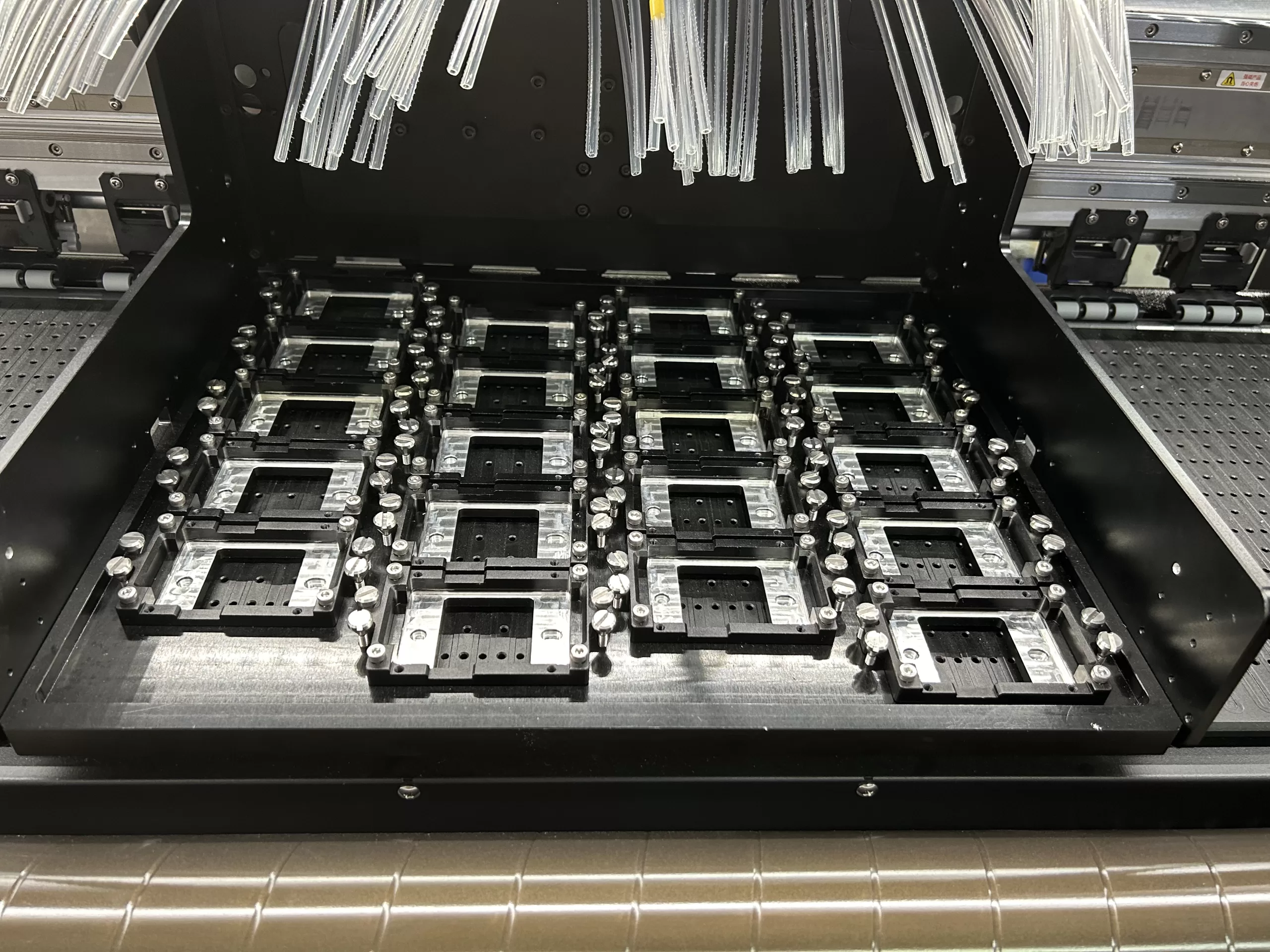

| Print Head | 20 pcs Epson i3200 print head | |
| Print Resolution/Speed | Produce Mode:700㎡/H | |
| Resolution Mode:350㎡/H | ||
| High Resolution Mode:250㎡/H | ||
| Maximum Print Width | 1900mm | |
| Ink type | Sublimation lnk | |
| Media | Width | 1900mm |
| Thickness | 1.5mm to 8mm adjustable for print head | |
| Weight | 560KG | |
| Type | Heat transfer paper | |
| High Printing Quality | VSD technology | |
| Media Heat method | Pre /Back Heater (can be controlled separately)（Optional） | |
| Media feeding Device | 10,000 meters | |
| Drying System | External air drying system | |

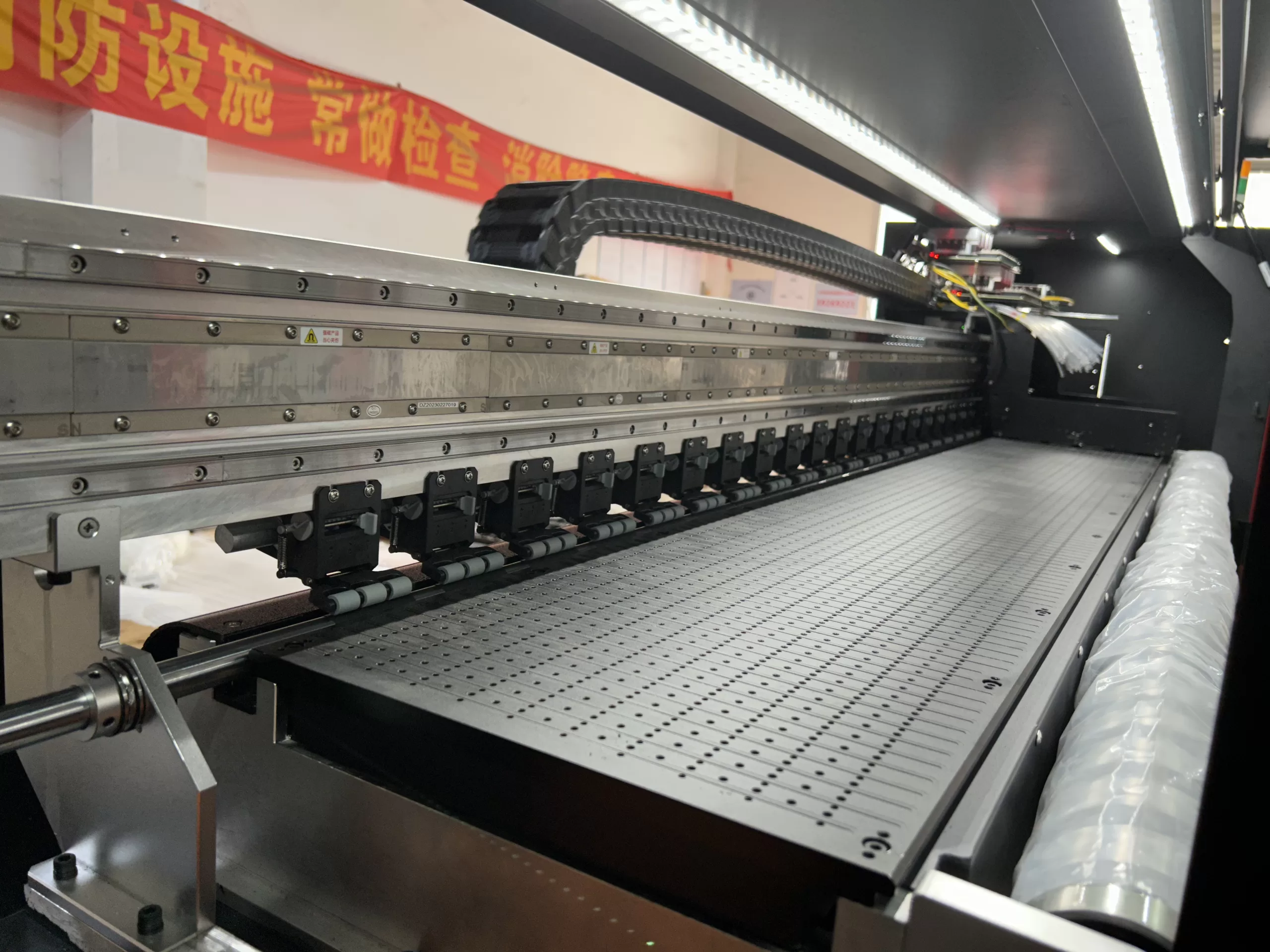

| Guide Rail | THK From Japan | |
| Interface | Three Gigabit network cards, 1000Mbit/s | |
| RIP Software | Maintop V6.0, Photo-print | |
| Voltage | AC 110V ± 10 %、AC 380 V ± 10 %、50 / 60 ± 1Hz | |
| Operation Environments | Temperature: 15℃-30℃, Humidity: 35%RH-65%RH | |
| Power | 16500W | |
| Dimensions of Printer(L*W*H) | 3701*2826*1701mm | |
| Packing dimensions: | Main body (LWH): | 3.94*1.55*1.88M |
| Media feeding system (LWH): | 2.945*1.11*1.25M | |
| Net Weight | 800+400（KG) | |
| Weight | 950+550(KG) | |
