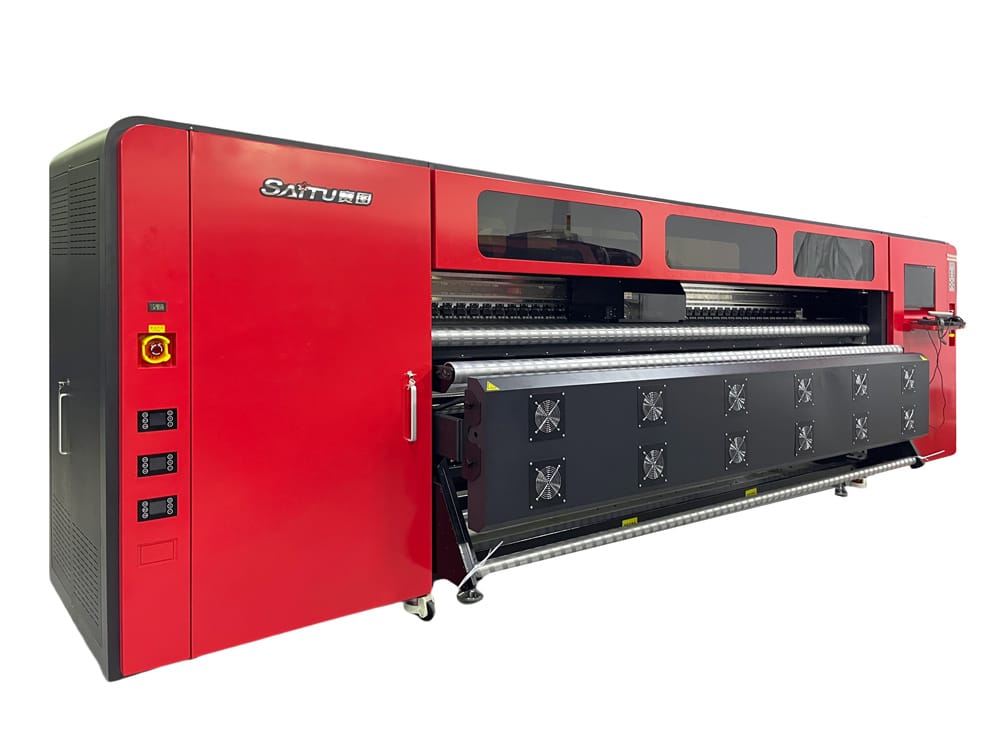

SAITU 3.2m 20 head JC3220 Sublimation Textile Printer
Saitu 3.2M, 20 pieces of Epson i3200 print heads sublimation printer
Specification:
| Model | JC3220 | |
| Print Head | 20 pieces Epson i3200 print heads | |
| Print Resolution/Speed | Produce Mode/ 1 pass: 780 ㎡/h | |
| Resolution Mode /2pass: 420㎡/h | ||
| Maximum Print Width | 3150mm | |
| Ink type | Sublimation lnk | |
| Media | Width | 3200mm |
| Thickness | 1.5mm to 8mm adjustable | |
| Weight | 10000 Meters | |
| Type | Heat transfer paper | |
| High Printing Quality | VSD technology | |
| Media feeding Device | Put 1.6 meters of paper, load-bearing capacity is 500kg; Put 3.2 meters of paper, load-bearing capacity is 700Kg | |
| Drying System | External air drying system | |
| Guide Rail | THK (Japan) guide rail with Magnetic levitation linear motor | |
| Interface | Three Gigabit nics 1000Mbit/s | |
| RIP Software | Maintop , Photoprint | |
| Voltage | AC 220V ± 10 %、AC 380 V ± 10 %、50 / 60 ± 1Hz | |
| Operation Environments | Temperature: 15℃-30℃, Humidity: 35%RH-65%RH | |
| Power | 25KW | |
| Dimensions of Printer (install space) | LWH: 5489*2715*2003.5 mm | |
| Packing dimensions: | Main body (LWH): | 5700*1500*1910mm |
| Media feeding system (LWH): | 4200*1140*1270mm | |
| Net Weight | Main body : | 1530kg |
| Jumbo roll system: | 570KG | |
| Gross Weight | Main body: | 2040kg |
| Jumbo roll system: | 760kg | |
Computer configuration requirements:
Asus 650 motherboard
Memory 32GB(16GBx2)
Solid State Drive 2T
Three Gigabit 2.5G network cards
hassis AOC CB114
Power supply AOC DD600
Voltage regulator with 5kw~8kw above
The voltage regulator is used for the power supply of the machine, and the infrared drying does not require a voltage regulator
Total power of dryer -22Kw, power parameters: 3 phase 4 line 380V
Wiring requirements: 10 square or more copper wire
Detailed photos:

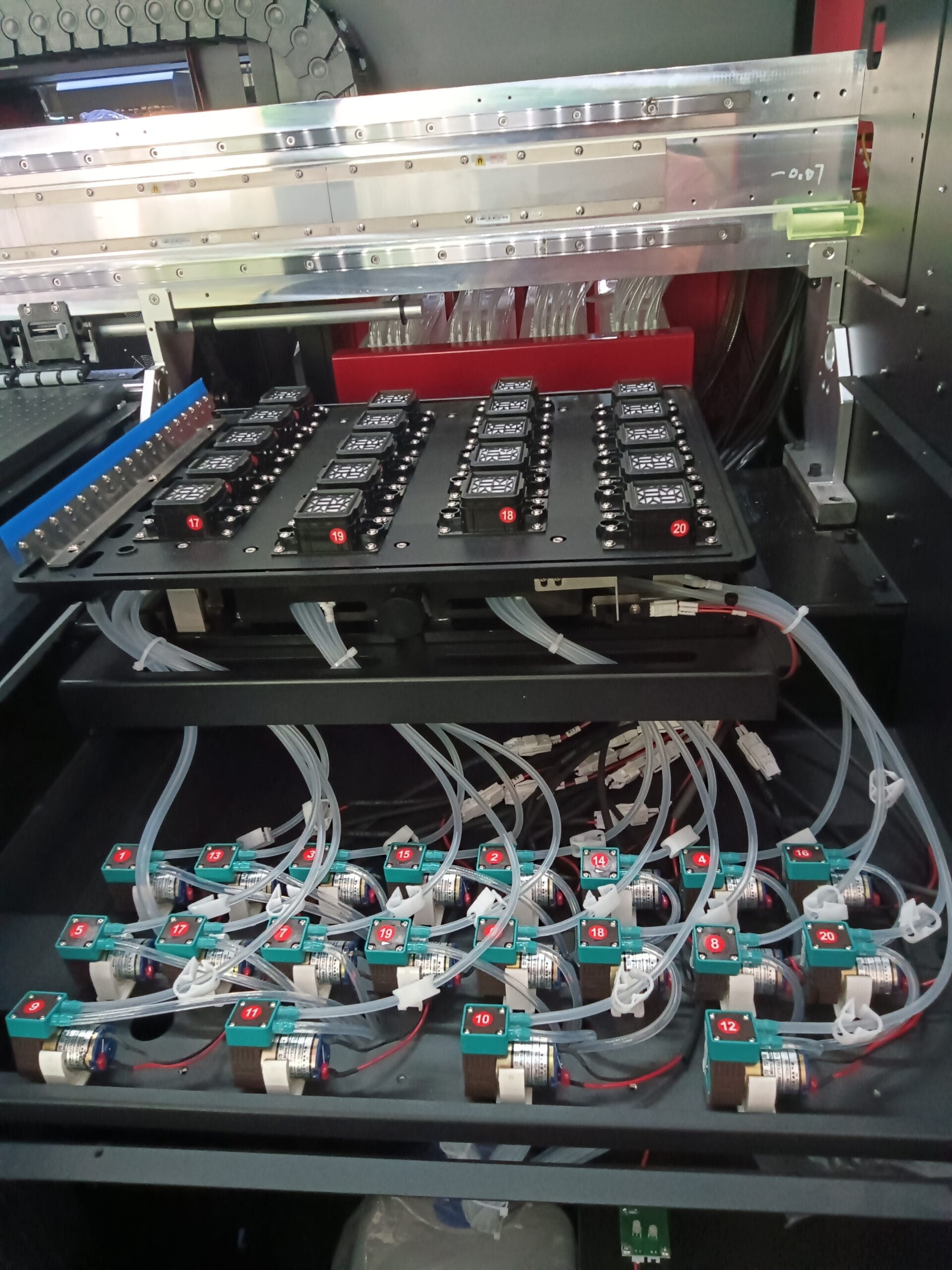

By adopting a more simplified base plate, the installation of the print head has become easier, significantly improving the efficiency of engineers during machine setup.
Additionally, the automatic adjustable ink station ensures that the print head remains in a moisturized state when the printer is not in operation.

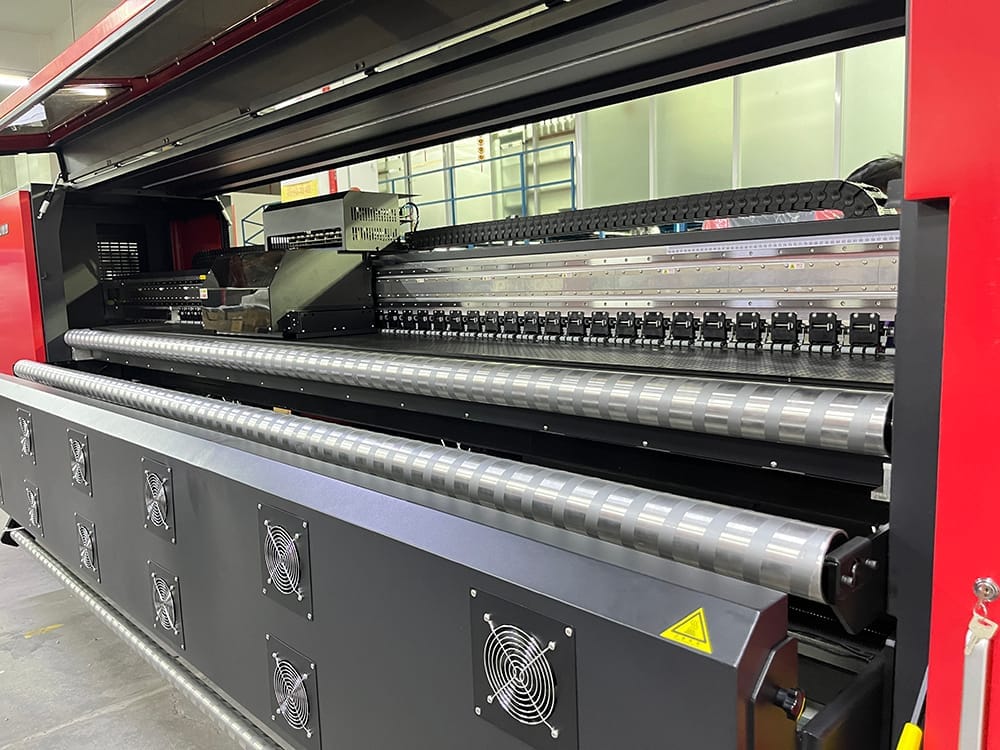

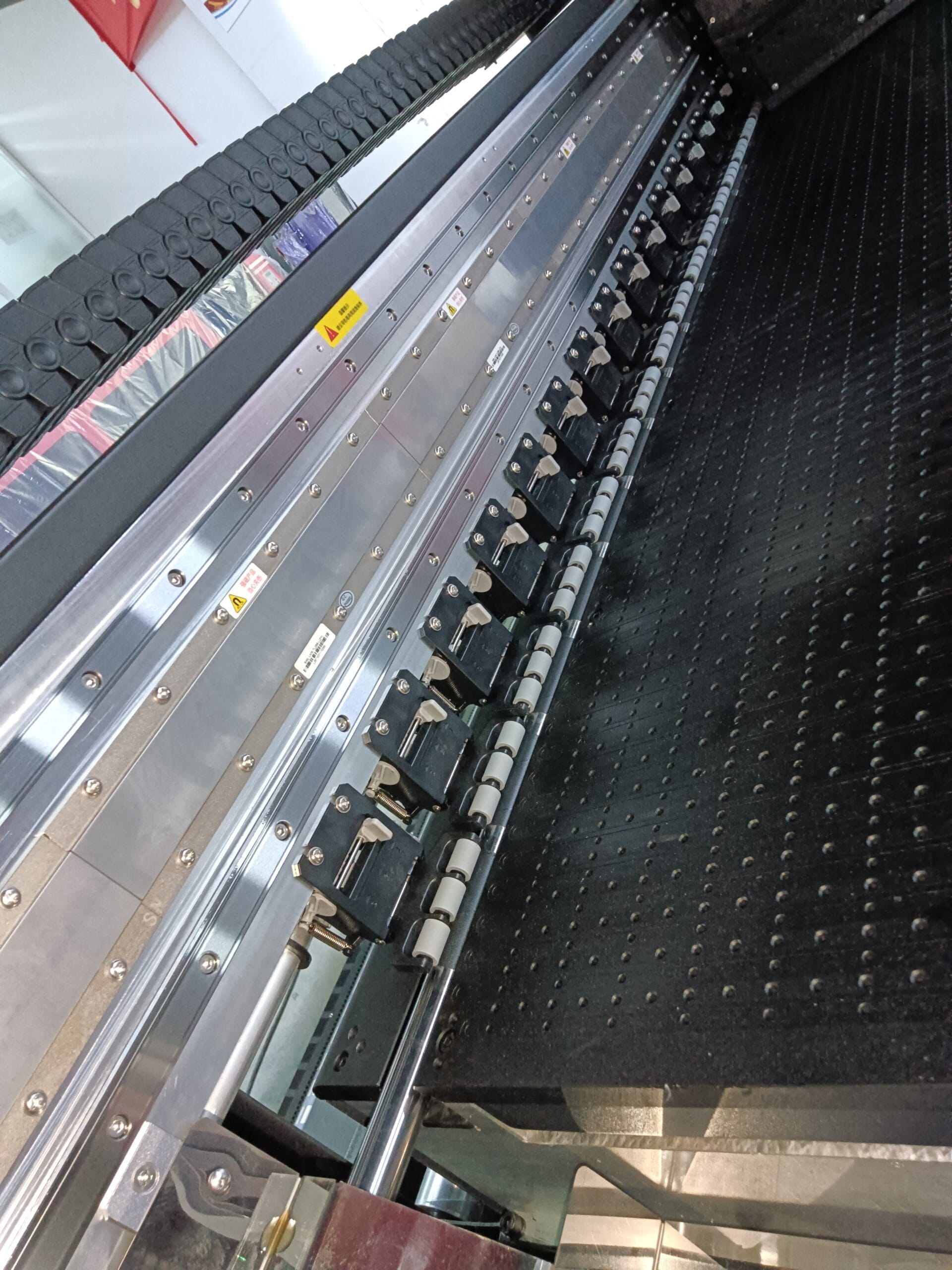

The compact design of the paper pressure rollers ensures smoother printing of various paper types, leading to improved print quality.
We use 2 auxiliary rods to ensure smoother paper feed during heavy ink printing, minimizing paper movement issues and enhancing the paper collection process, ultimately improving the quality of the printed image.

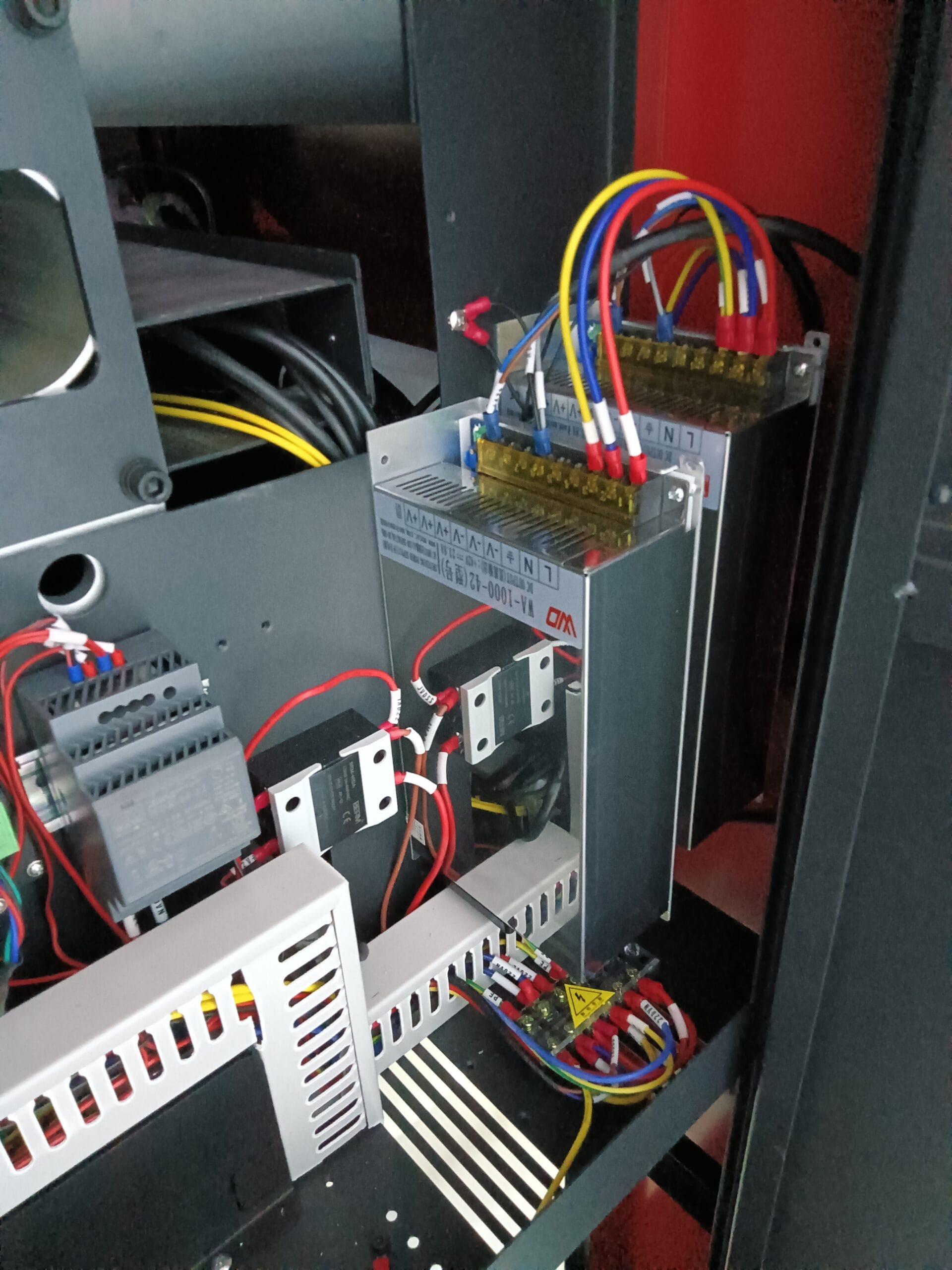

We utilize CE-certified power supply boxes and superior cables to ensure the safety of users’ electrical usage.

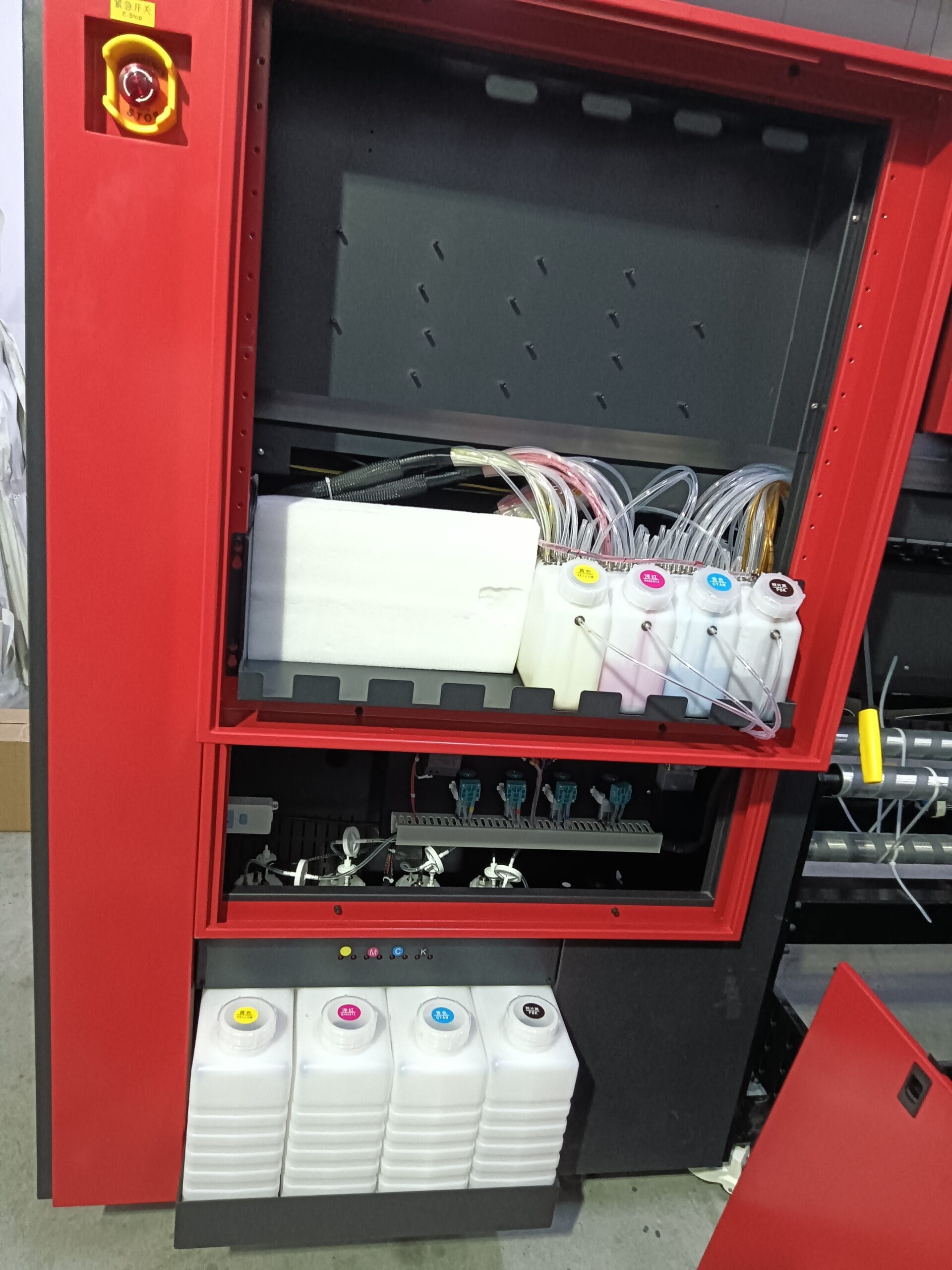

10L ink tank ensures long-term high-speed printing for improved efficiency.

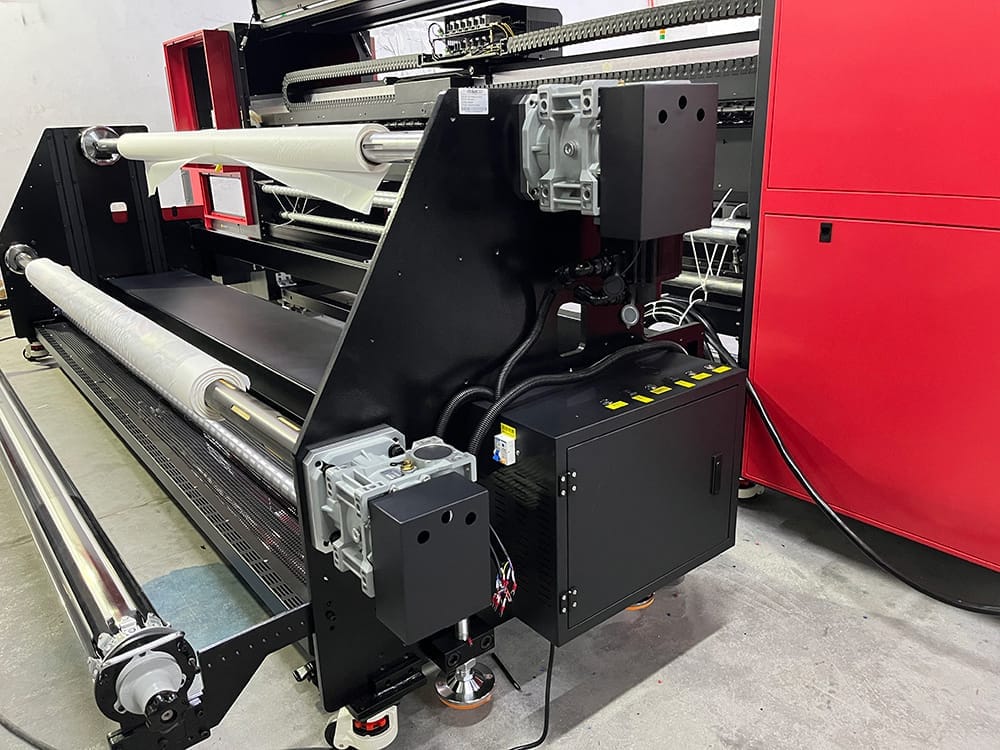

Using a reinforced stainless steel feeding air shaft, it can support a maximum weight of 700Kg, enabling users to select larger paper sizes, thus effectively improving production efficiency.
