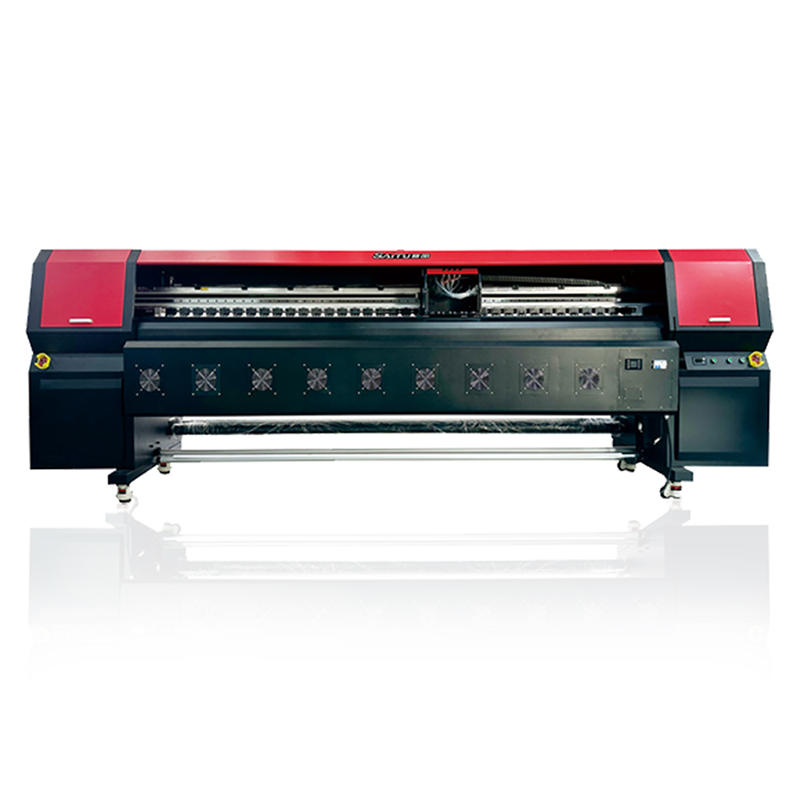

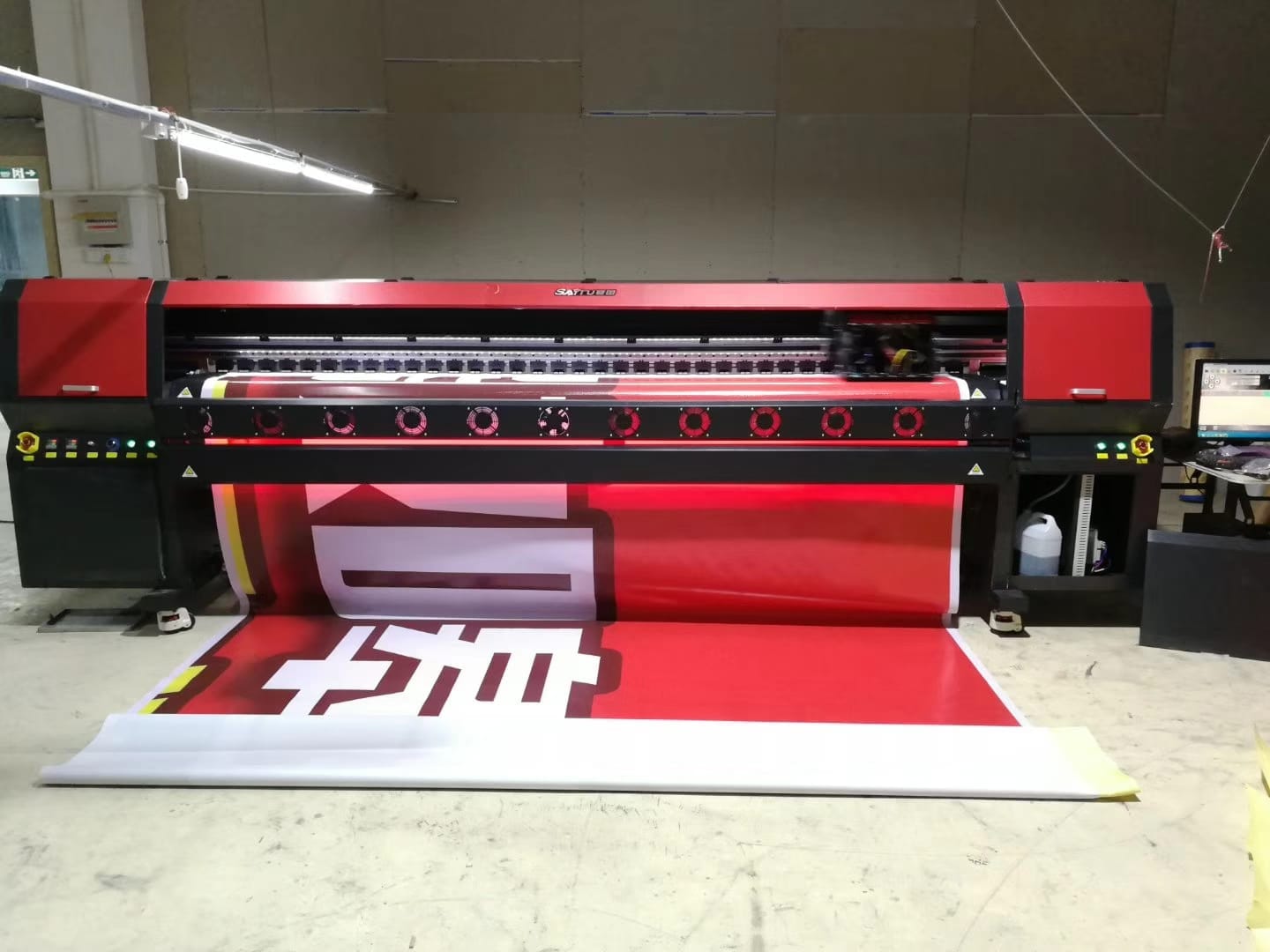

Saitu 3.2m Solvent Printer Konica 512i head JC512i
The Konica 512i solvent printer boasts a durable print head, 30PL , vivid colors, and a cost-effective printing solution.
描述
Parameter:
| Model | ST3204 | ST3208 | |

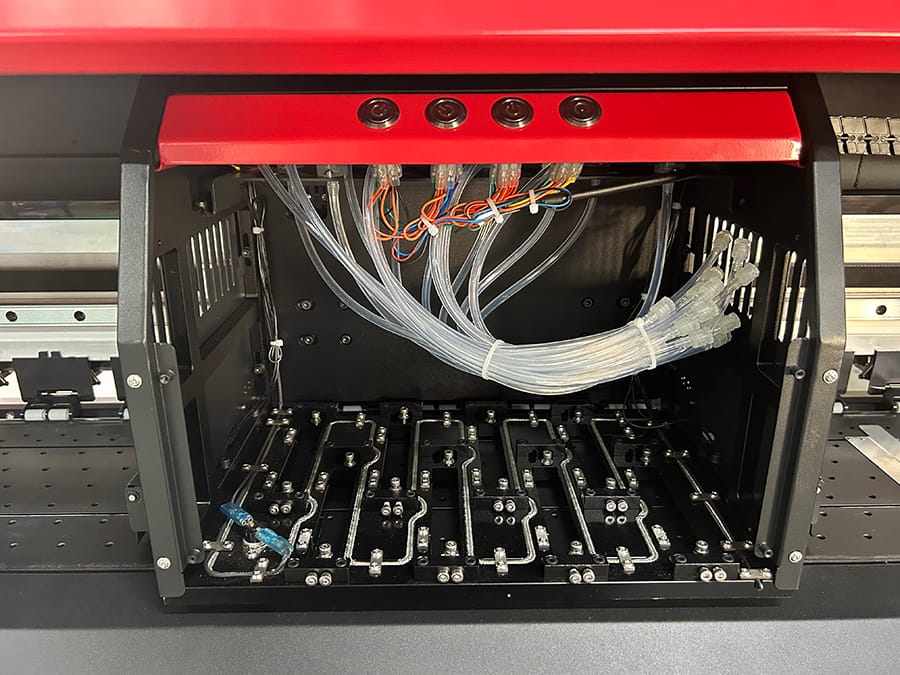

| Print head | 4 pcs Konica 512i print heads,480dpi, 30pl | 8 pcs Konica 512i print heads,480dpi, 30pl | |
| Maximum print width | 3200mm | ||
| Print resolution /Speed | Product mode: 163 sqm/H | Product mode: 326 sqm/H | |
| Resolution mode: 120 sqm/H | Resolution mode: 240 sqm/H | ||
| High resolution mode: 86 sqm/H | High resolution mode: 172 sqm/H | ||

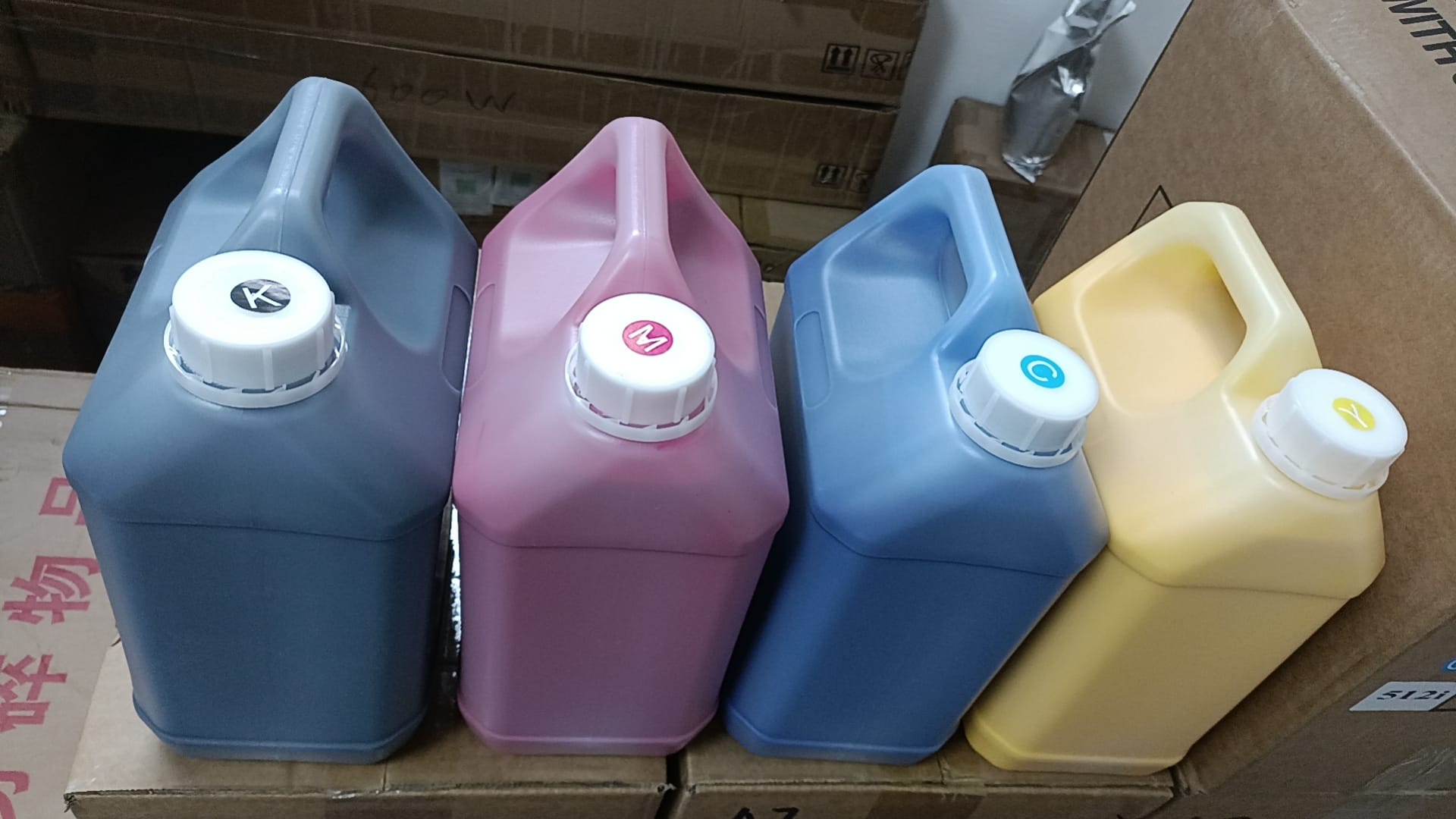

| Ink | Sort | Solvent ink | |
| Capacity | 5L | ||
| Media | Width | 3300mm | |
| Thickness | 1.5mm to 7mm adjustable | ||
| Material weight | 225KG | ||
| Sort | Banner, tarpaulin,soft film,sticker, inflatable and so on. | ||
| High printing quality | Fixed point | ||
| Media heater | Pre/back heater (can be controlled seperately ) | ||
| Media take-up system | Non | ||
| Drying system | Infrared ray drying system | ||

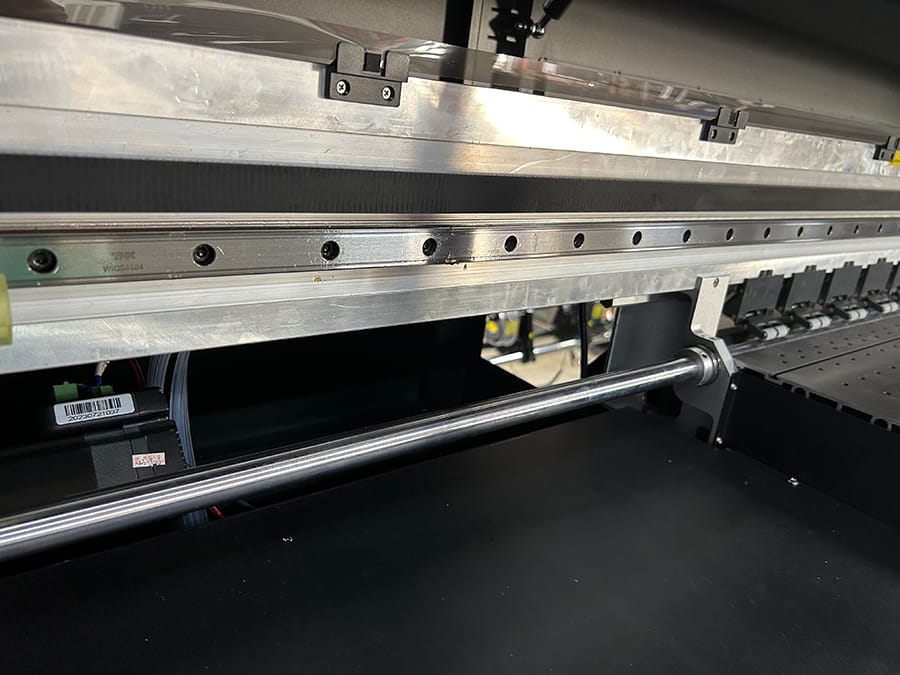

| Guide Rail | THK from Japan | ||
| Interface | USB 3.0 | ||
| RIP software | Main Top 6.0. photo print | ||
| Voltage | AC 110V ±10%,AC 220V± 10%,50/60 ±1Hz | ||
| Operation environments | Temperature: 15℃-30℃,Humidity:35%RH-65%RH | ||
| Power | 3500W | 5000W | |
| Dimensions of printer (LWH) | 4720*990*1450mm | 4720*990*1450mm | |
| Dimensions of packing (LWH) | 4880*1135*1550mm | 4880*1135*1550mm | |
| Net weight | 900KG | 900KG | |
| Gross weight | 980KG | 980KG | |
