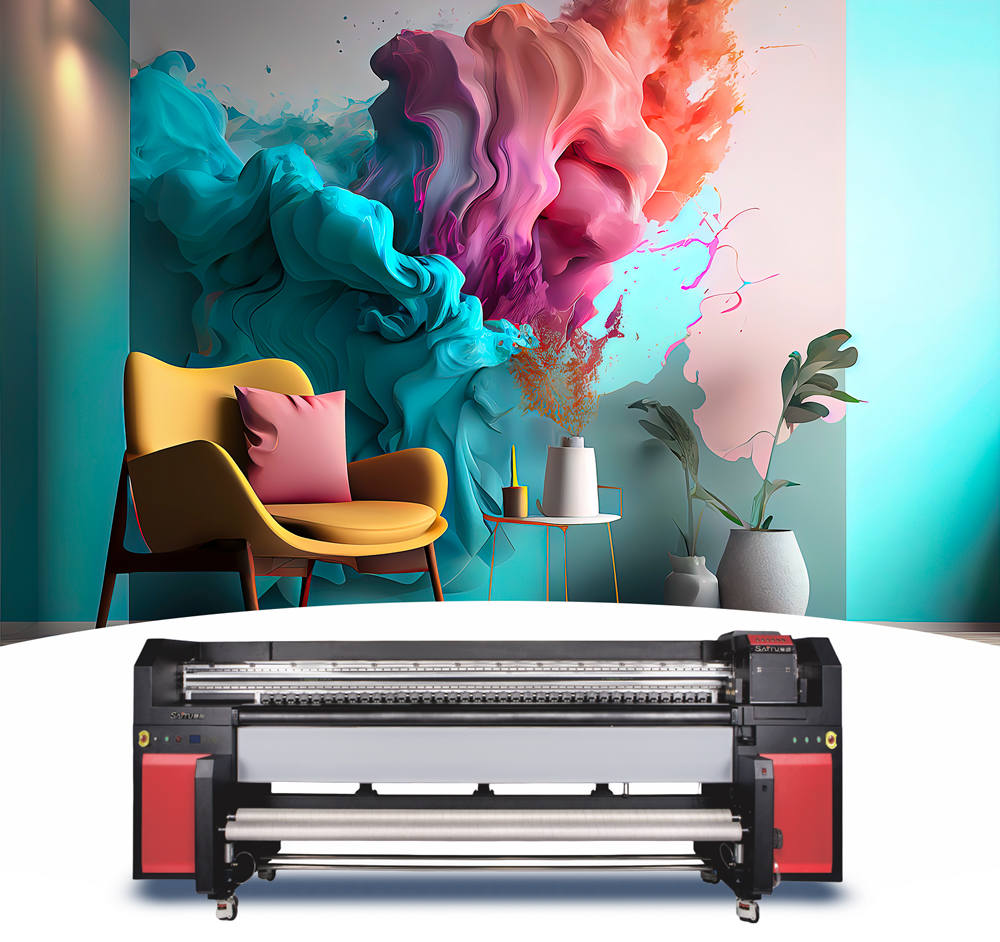

SAITU 3.2m G5 UV roll-to-roll printer:JC3206UV
Revamp Your Space with High-Quality Wall Decor: Explore our wide range of options including soft film,inflatable, sticker, and all kinds of wall paper. Our advanced 3.2M G5 print head, UV printer, and roll-to-roll printer ensure exceptional print quality. Elevate your decor game today!
Looking to enhance the aesthetics of your space? Look no further! Our wide range of products includes soft films,inflatables, stickers, back-lit options, and various kinds of wallpaper. Our state-of-the-art UV printer equipped with a 3.2M G5 print head ensures stunning, high-quality prints. With our roll-to-roll printer, we can cater to all your printing needs. Elevate your decor with us now! Boost your space’s appeal with our extensive selection of design options and cutting-edge printing technology. Experience the difference today!
Revamp Your Space with High-Quality Wall Decor: Explore our wide range of options including soft film,inflatable, sticker, and all kinds of wall paper. Our advanced 3.2M G5 print head, UV printer, and roll-to-roll printer ensure exceptional print quality. Elevate your decor game today!
PRODUCTS PARAMETER
| Model | JC3206UV (for wall paper) | JC3206UV (for soft film) | |
| Print head | 6 pcs *RICOH G6 print heads, including 600 nozzles/row *2 lines*1, up to 1200dpi | ||
| Maximum print width | 3200mm | ||
| Print resolution / Speed | Product mode: 22㎡/H | Product mode: 20㎡/H | |
| Resolution mode: 19㎡/H | Resolution mode: 16㎡/H | ||
| High resolution mode: 16㎡/H | High resolution mode: 12㎡/H | ||
| Ink | Sort | UV ink | |
| Capacity | Empty ink supply system | ||
| Media | Width | 3300mm | |
| Thickness | 1.5mm to 8mm adjustable | ||
| Material weight | 225KG | ||
| Sort | Soft film,inflatable, sticker, back lit, all kinds of wall paper and so on. | ||
| High printing quality | VSD technology | ||
| Media heater | Back heater (can be controlled seperately ) | ||
| Media take-up system | Soft film take-up device (optional) | ||
| Drying system | UV light heater,LED light chiller | ||
| Guide Rail | THK from Japan | ||
| Interface | USB 3.0 | ||
| RIP software | Main Top 6.0. photo print | ||
| Voltage | AC 110V ±10%,AC 220V± 10%,50/60 ±1Hz | ||
| Operation environments | Temperature: 15℃-30℃,Humidity:35%RH-65%RH | ||
| Power | 3500W | ||
| Dimensions of printer (LWH) | 4800*1160*1580mm | ||
| Dimensions of packing (LWH) | 4880*1220*1680mm | ||
| Net weight | 700KG | ||
| Gross weight | 900KG | ||
The maximum number of Ricoh print heads that can be arranged is six. Configurations such as W CMYK, W CMYK V, and WW CMYK CMYK are all possible.
The platform and front assist bars can ensure a flatter printing surface for the material.
The dedicated rewind system ensures a larger contact surface for elastic materials, resulting in a smoother and flatter printing process.
Board cards and clearly visible lines
