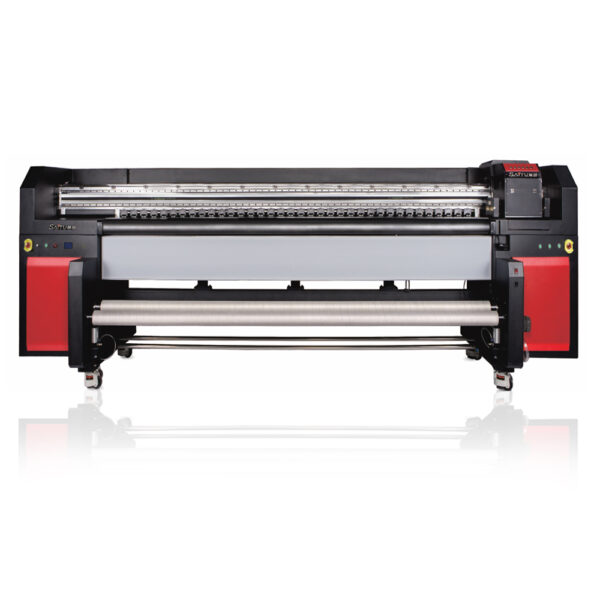

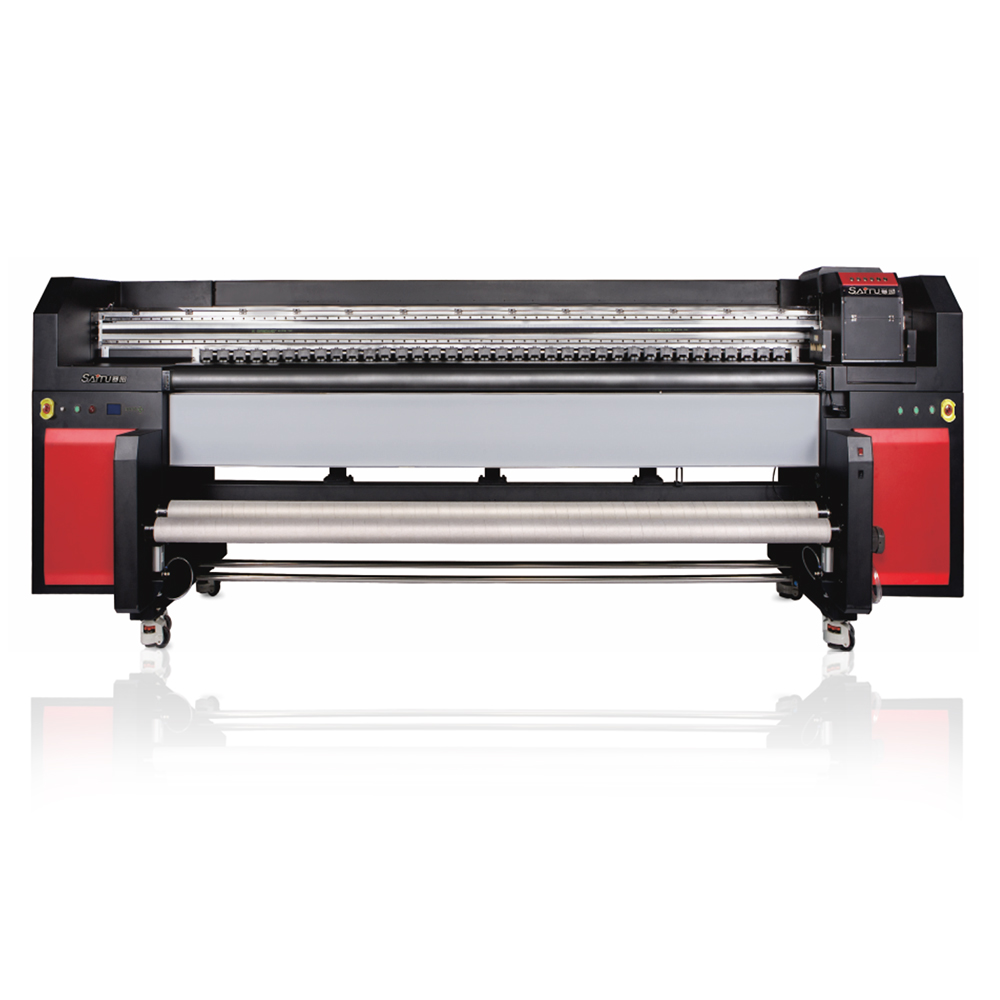

3.2m Saitu roll to roll printer
Specification:
| Mode | JC3204UV | JC3206UV | |
| Print Head | Ricoh G5 | ||
| Color | CMYK | W CMYK V | |
| Print Resolution/Speed | Produce Mode:22㎡/H | Produce Mode:20㎡/H | |
| Resolution Mode:19㎡/H | Resolution Mode:16㎡/H | ||
| High Resolution Mode:16㎡/H | High Resolution Mode:12㎡/H | ||
| Maximum Print Width | 3200mm | 3200mm | |
| Ink | Sort | UV Ink | |
| Capacity | Empty Ink Supply System | ||
| Media | Width | 3300mm | |
| Thickness | 1.5mm to 8mm adjustable | ||
| Sort | Soft film, Inflatable, Sticker, Black lit, all kinds of wall paper and so on | ||
| High Printing Quality | VSD technology | ||
| Media Heater | Back Heater (can be controlled separately) | ||
| Media Take-up Device | Soft film take-up device（Optional） | ||
| Guide Rail | Famous Brand: THK from Japan | ||
| Interface | USB2.0 | ||
| RIP Software | Photo print, Main top | ||
| Voltage | AC 110V ± 10 %、AC 220 V ± 10 %、50 / 60 ± 1Hz | ||
| Operation Environments | Temperature: 15℃-30℃℃, Humidity: 35%RH-65%RH | ||
| Power | Printer:4000W ; Uv light: 2500W | ||
| Dimensions of Printer(L*W*H) | 4690* 960 * 1380 mm | ||
| Dimensions of Packing(L*W*H) | 4880 * 1135* 1480mm | ||
| Net Weight | 700KG | ||
| Weight | 900KG | ||

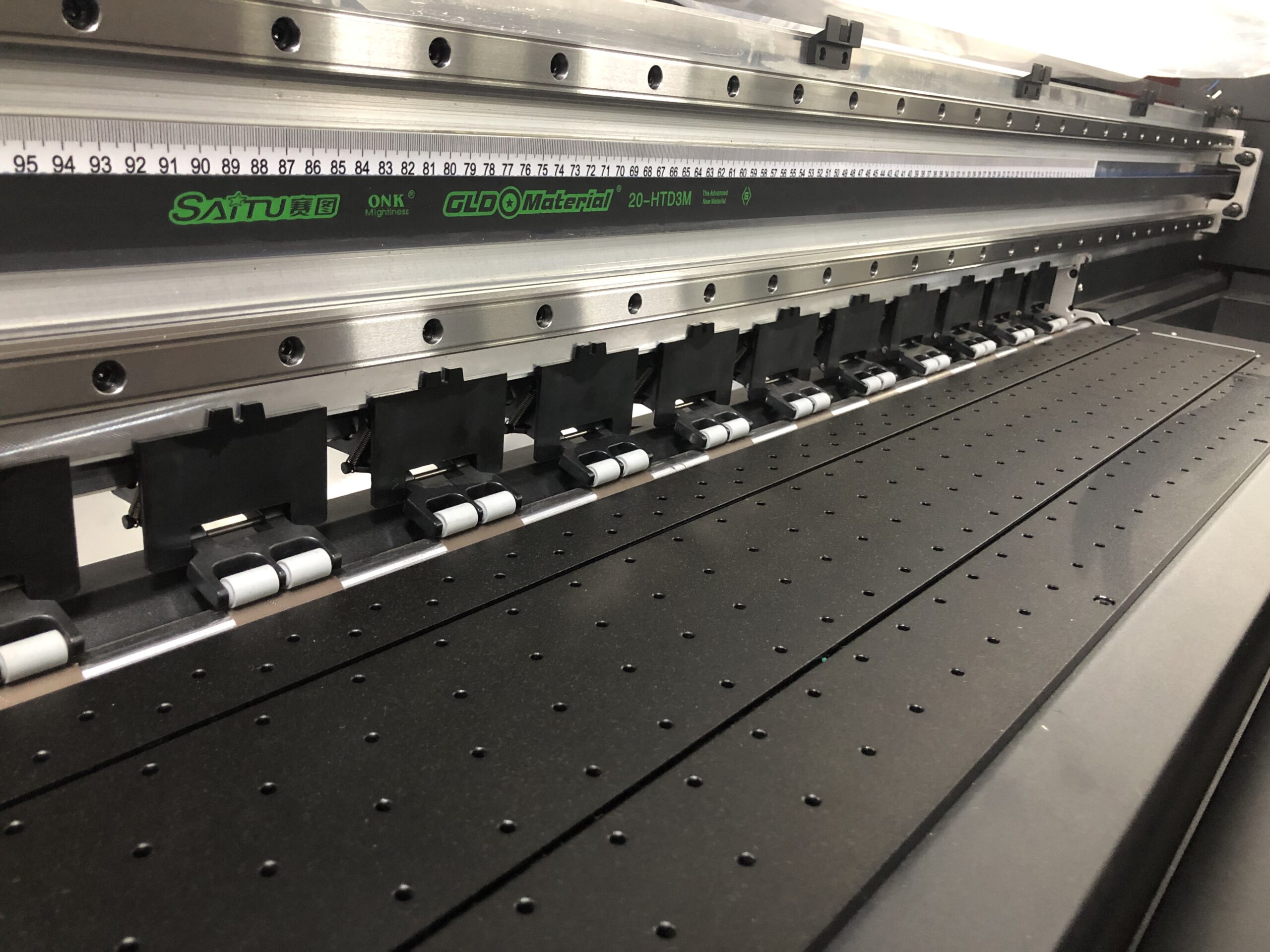

1.As for the platform, we made a detachable platform, which is more solid and can adapt to different materials.
The new three-group paper pressing wheel makes the material smoother during printing.

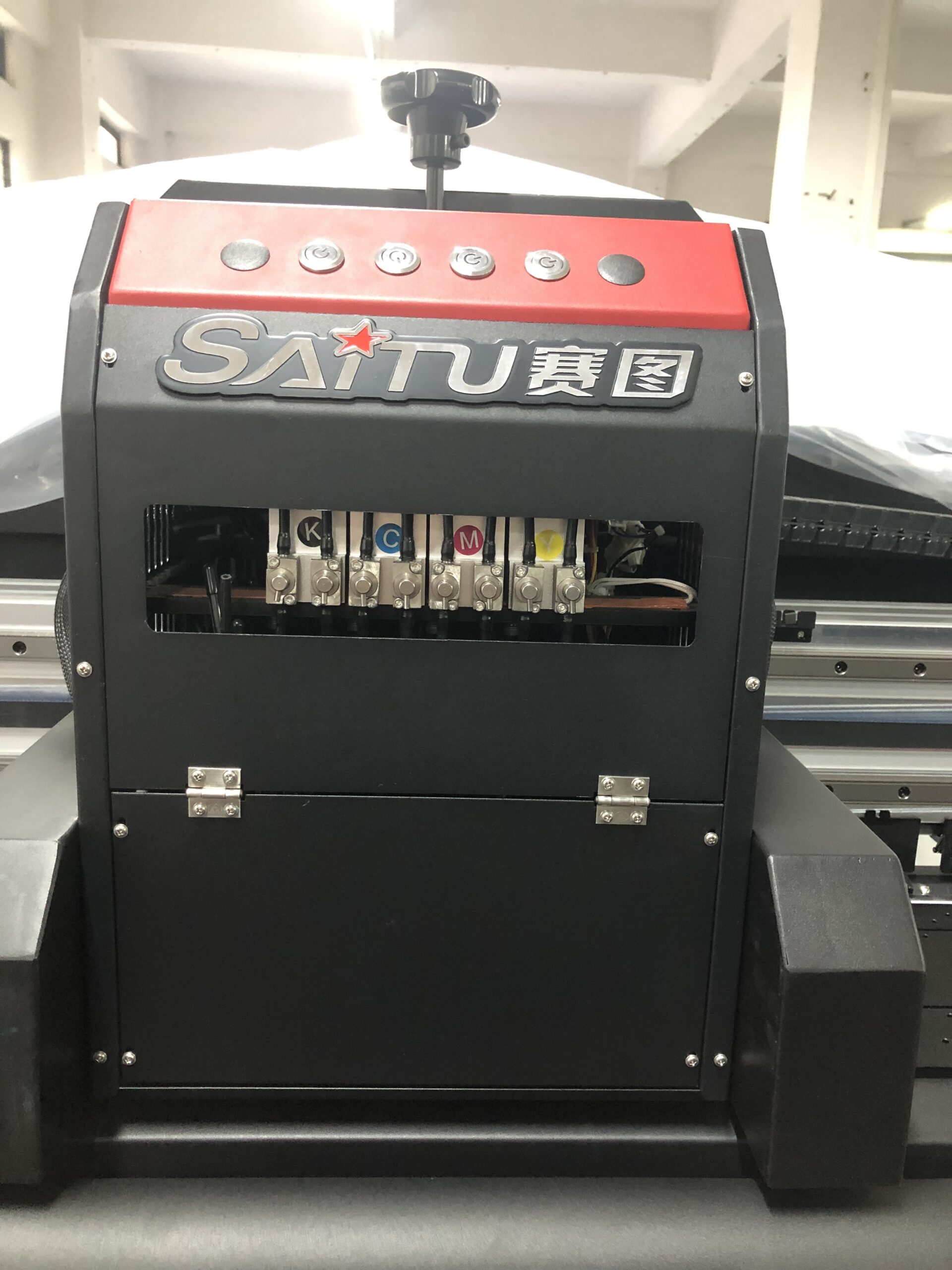

2.The trolley is equipped with an anti-collision device, which can stop the machine immediately when the material is scratched to protect the nozzle.
The nozzle base has been thickened, so the nozzle can be placed directly on it for fine-tuning, making installation easy

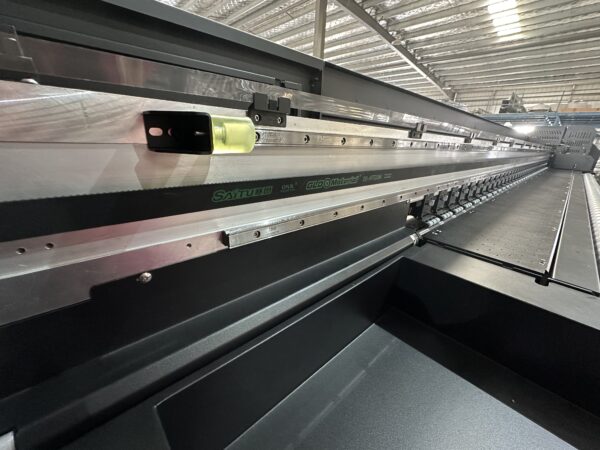

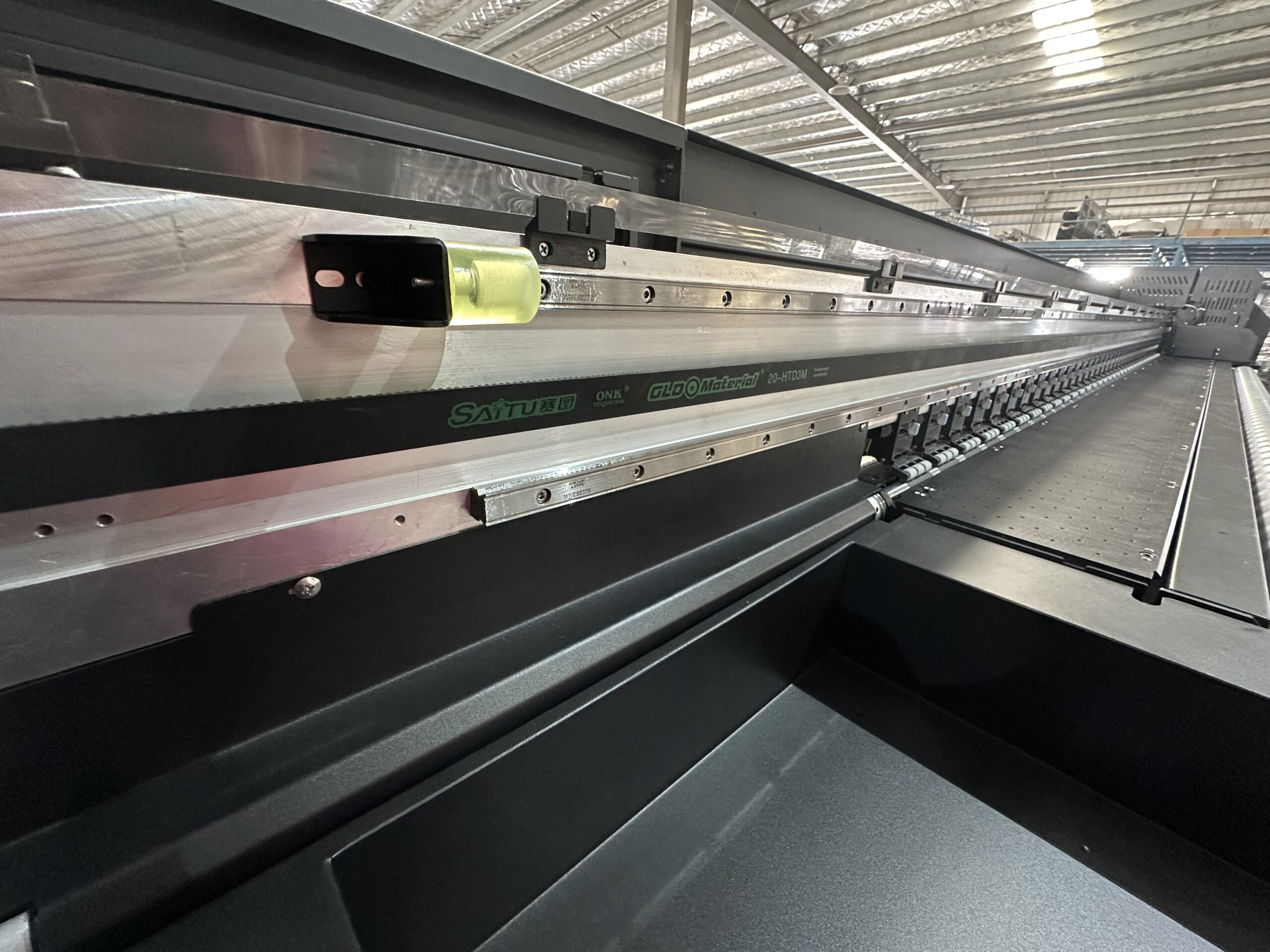

3.THK double guide rails imported from Japan run more quietly and smoothly, making printing more accurate
4.Automatic ink alarm system
ink：CMYK/CMYK＋W/ W+ CMYK+ V

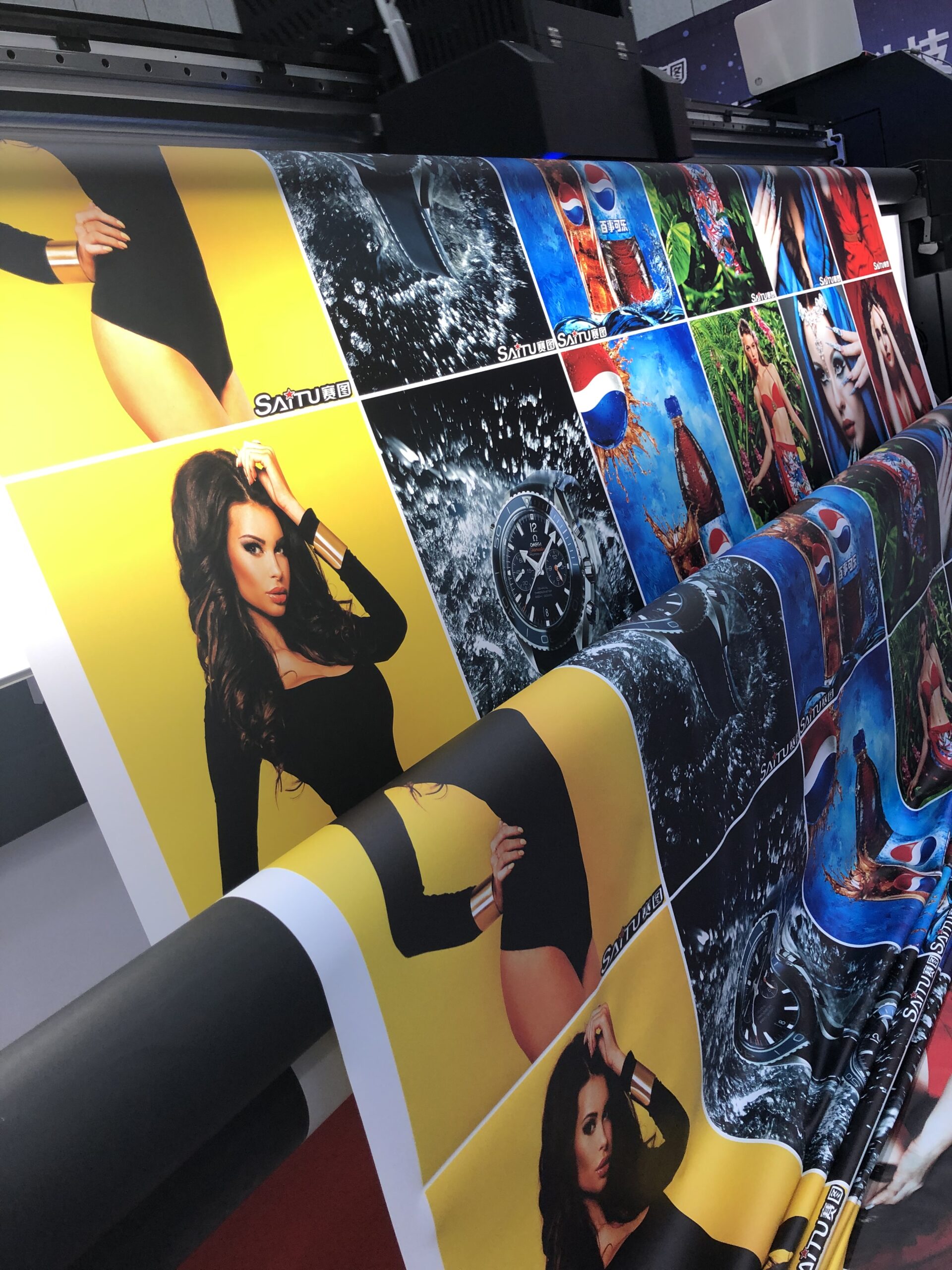

5.Paper collection system ：Pneumatic lifting rubber roller, printing materials are smoother, printing accuracy is higher, equipped with soft film paper collector
6.Paper feeding system
